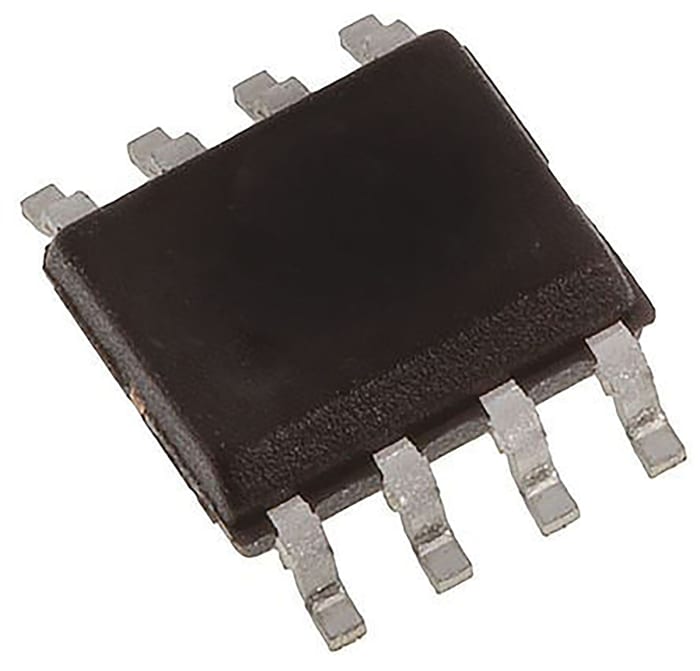

Texas Instruments Adjustable Shunt Voltage Reference 2.5 - 36V ±0.4 % 8-Pin SOIC, TL1431CD
Technical Document
Specifications
Brand
Texas InstrumentsNominal Voltage
2.5 - 36V
Package Type
SOIC
Reference Type
Adjustable
Initial Accuracy
±0.4 %
Mounting Type
Surface Mount
Topology
Shunt
Maximum Output Current
100mA
Maximum Input Voltage
37 V
Minimum Output Voltage
2.5 V
Maximum Output Voltage
36 V
Pin Count
8
Dimensions
4.9 x 3.91 x 1.58mm
Minimum Operating Temperature
0 °C
Height
1.58mm
Maximum Operating Temperature
+70 °C
Length
4.9mm
Width
3.91mm
Product details
Shunt Voltage Reference, Adjustable, TL Series
Voltage References, Texas Instruments
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
