Technical Documents
Specifications
Brand
ApemProduct Type
Toggle Switch
Contact Configuration
DPDT
Switch Operation
On-On
Switch Contact Current
4A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No

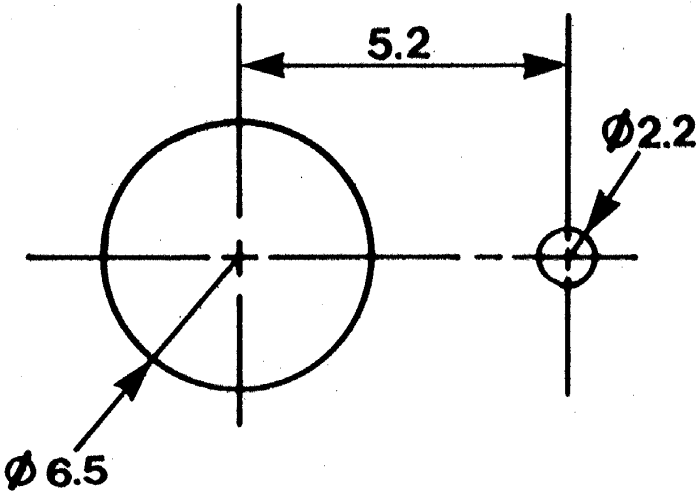

Panel Cutout Size
6.5 mm
Actuator Length
11.4mm
Minimum Operating Temperature
-40°C
Contact DC Voltage
30V dc
Contact AC Voltage
250V ac
Actuator Material
Brass
Maximum Operating Temperature
85°C
Switch Configuration
On-Mom
Height
34.2mm
Length
13.2mm
Standards/Approvals
UL, RoHS, CSA, CECC
Width
12mm
Series
5000
Mechanical Life
100000Operations
Country of Origin
France
Product Details
For biased switches '(on)' refers to momentary 'on' position
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
6.405 OMR
6.405 OMR Each (ex VAT)
6.725 OMR
6.725 OMR Each (inc. VAT)
1
6.405 OMR
6.405 OMR Each (ex VAT)
6.725 OMR
6.725 OMR Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | 6.405 OMR |
| 25 - 49 | 5.376 OMR |
| 50 - 99 | 5.029 OMR |
| 100 - 249 | 4.772 OMR |
| 250+ | 4.443 OMR |
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Technical Documents
Specifications
Brand
ApemProduct Type
Toggle Switch
Contact Configuration
DPDT
Switch Operation
On-On
Switch Contact Current
4A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No
Panel Cutout Size
6.5 mm
Actuator Length
11.4mm
Minimum Operating Temperature
-40°C
Contact DC Voltage
30V dc
Contact AC Voltage
250V ac
Actuator Material
Brass
Maximum Operating Temperature
85°C
Switch Configuration
On-Mom
Height
34.2mm
Length
13.2mm
Standards/Approvals
UL, RoHS, CSA, CECC
Width
12mm
Series
5000
Mechanical Life
100000Operations
Country of Origin
France
Product Details
For biased switches '(on)' refers to momentary 'on' position
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
