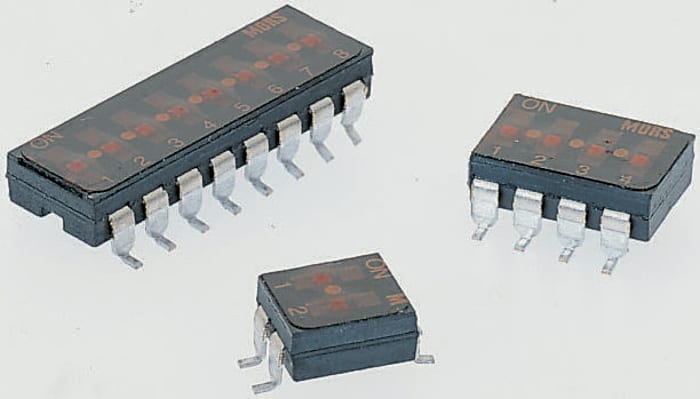

Apem 2 Way Surface Mount DIP Switch SPST, Recessed Actuator Slide Actuator
Technical Document
Specifications
Brand
ApemNumber of Positions
2
Mounting Type
Surface Mount
Contact Material
Phosphor Bronze (Moving Contact)
Contact Configuration
SPST
Package Style
DIP
Actuator Type
Recessed Actuator Slide
Contact Current Rating
100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +85°C
Voltage Rating
24 V dc, 50V dc
Dielectric Strength
500V ac
Country of Origin
China
Product details
Apem DIP Switch - IKD Series
The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting
Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Dual-In-Line Switches
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
49.324 OMR
0.649 OMR Each (In a Tube of 76) (ex VAT)
51.790 OMR
0.681 OMR Each (In a Tube of 76) (inc. VAT)
76
49.324 OMR
0.649 OMR Each (In a Tube of 76) (ex VAT)
51.790 OMR
0.681 OMR Each (In a Tube of 76) (inc. VAT)
76
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Tube |
|---|---|---|
| 76 - 304 | 0.649 OMR | 49.324 OMR |
| 380 - 684 | 0.594 OMR | 45.144 OMR |
| 760 - 1444 | 0.550 OMR | 41.800 OMR |
| 1520 - 2204 | 0.500 OMR | 38.038 OMR |
| 2280+ | 0.484 OMR | 36.784 OMR |
