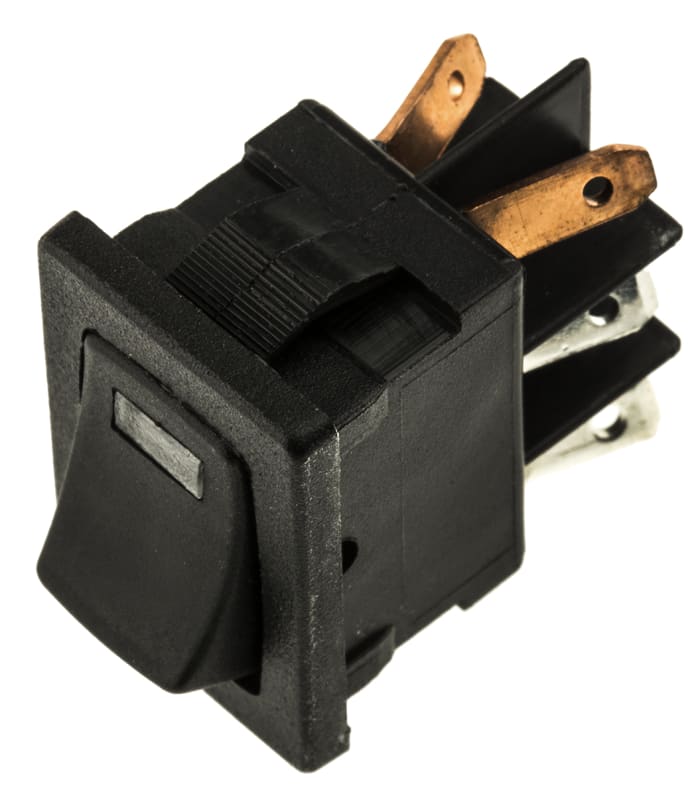

C & K Illuminated DPST, On-Off Rocker Switch Panel Mount
Technical Document
Specifications
Brand
C & KContact Configuration
DPST
Switch Operation
On-Off
Panel Cut Out Width
12.9mm
Panel Cut Out Height
19.4mm
Contact Current Rating
3 A
Illuminated
Yes
Actuator Colour
Black
Mounting Type
Panel Mount
Terminal Type
Quick Connect
Actuator Shape
Rectangular
Panel Cut Out Size
19.4 x 12.9mm
Case Material
Nylon 66
Contact Material
Silver Plated Silver Alloy
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +85°C
Maximum Operating Temperature
+85°C
Distrelec Product Id
30259662
Product details
DM Series LED Rocker Switch
These miniature illuminated power rocker switches are designed for use in a wide variety of applications including instrumentation, industrial and office machines.
Available with a red or green LED
Silver contacts
Electrical Life: 10000 operations under full load
Connection via 2.8 mm blade terminals
Dimensions: H20.83, W15, D20.14mm
Approvals
UL; CSA
5.186 OMR
5.186 OMR Each (ex VAT)
5.445 OMR
5.445 OMR Each (inc. VAT)
1
5.186 OMR
5.186 OMR Each (ex VAT)
5.445 OMR
5.445 OMR Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 4 | 5.186 OMR |
| 5 - 9 | 4.785 OMR |
| 10 - 24 | 4.565 OMR |
| 25 - 49 | 4.306 OMR |
| 50+ | 4.098 OMR |
