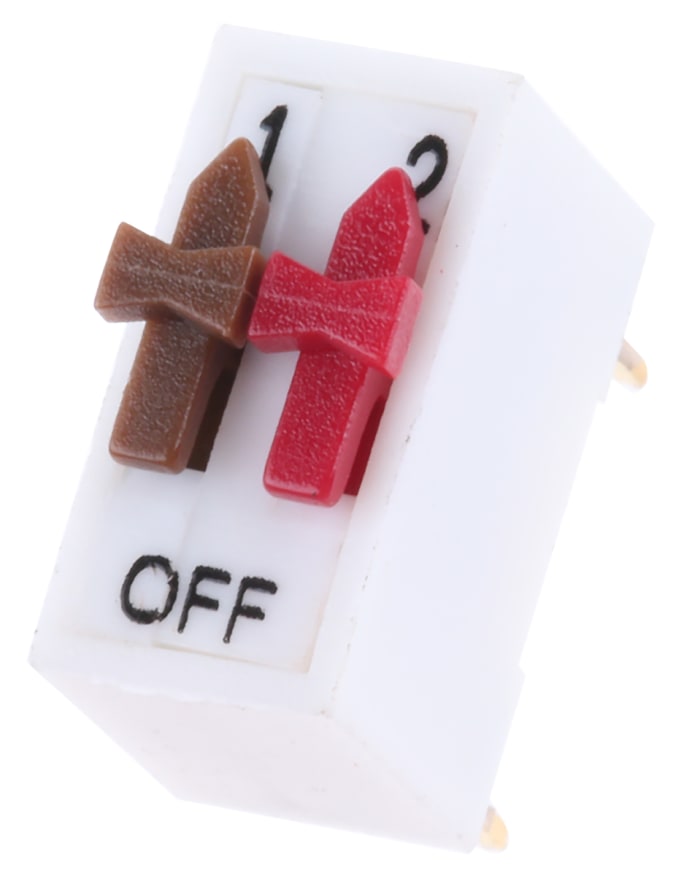

ERG 2 Way Through Hole DIP Switch DPST
Technical Document
Specifications
Brand
ERGNumber of Positions
2
Mounting Type
Through Hole
Contact Material
Gold Plated
Contact Configuration
DPST
Package Style
DIP
Actuator Type
Slide
Contact Current Rating
1 A @ 100 V
Mechanical Life
10000Operations
Maximum Operating Temperature
+100°C
Minimum Operating Temperature
-55°C
Operating Temperature Range
-55 → +100°C
Voltage Rating
100V ac
Country of Origin
Taiwan, Province Of China
Product details
Lateral Operating Switches
Available in a choice of configurations
Tape sealing is essential to prevent the ingress of cleaning fluids during flow solder processes
Non switching rating: 5A @ 100Vac
Contact resistance: 10mΩ
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
4.208 OMR
4.208 OMR Each (ex VAT)
4.418 OMR
4.418 OMR Each (inc. VAT)
1
4.208 OMR
4.208 OMR Each (ex VAT)
4.418 OMR
4.418 OMR Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
