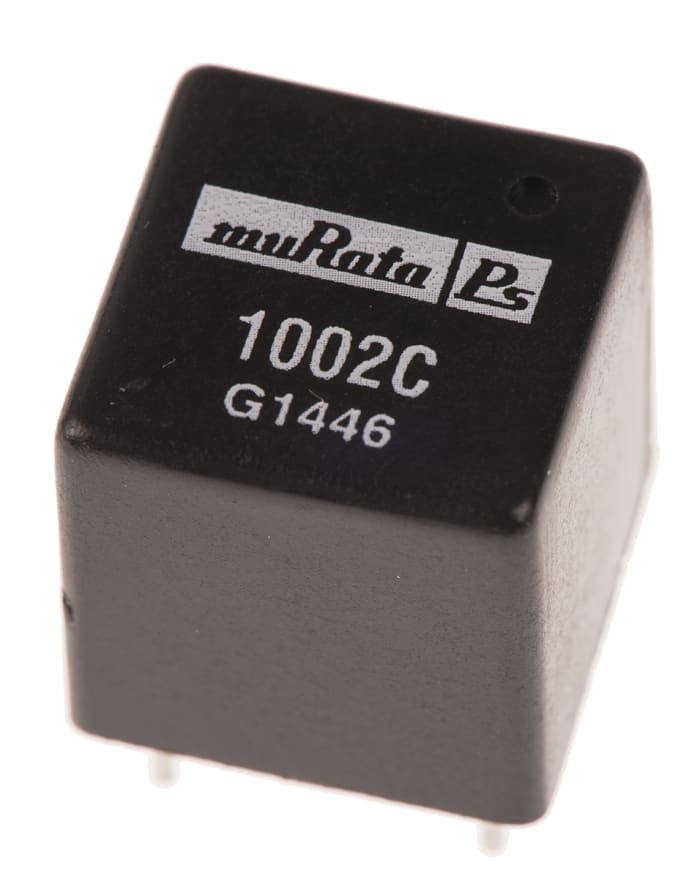

Murata Power Solutions PCB Pulse Transformer 1:1:1 Turns Ratio, 3 mH Prim. Inductance, 1.4Ω Prim. Resistance
Technical Document
Specifications
Product Type
Pulse Transformer
Primary Inductance
3mH
Primary DC Resistance
1.4Ω
Secondary DC Resistance
1.7Ω
Turns Ratio
1:1:1
Mount Type
PCB
Leakage Inductance
9μH
Number of Pins
6
Minimum Operating Temperature
0°C
Maximum Operating Temperature
70°C
Width
15.06 mm
Length
15.06mm
Depth
15.75mm
Weight
8g
Standards/Approvals
UL, RoHS
Series
1000
Isolation Voltage
2000Vrms
Country of Origin
China
Product details
Murata Pulse Transformers, 1000 Series
The 1000 series Pulse Transformers are intended for wideband and pulse operations. They are also suitable for signal isolation and use in small isolated power supplies.
The compact footprint makes them ideal for applications where space is at a premium
Isolation to 4kVrms
