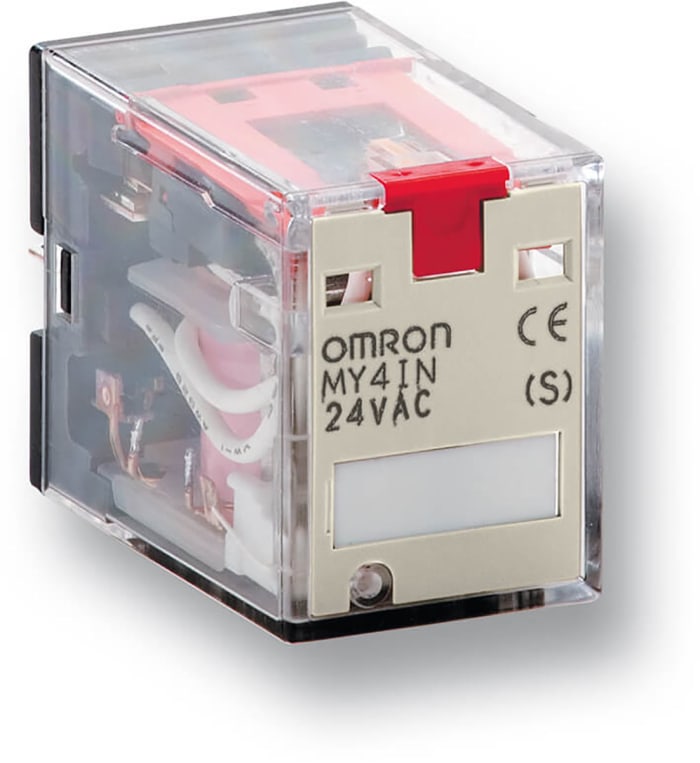

Omron Plug In Power Relay, 24V ac Coil, 5A Switching Current, DPDT
Technical Document
Specifications
Brand
OmronCoil Voltage
24V ac
Contact Configuration
DPDT
Mounting Type
Plug In
Switching Current
5A
Number of Poles
2
Latching
No
Terminal Type
Plug In
Maximum Switching Voltage AC
250V ac
Maximum Switching Voltage DC
220V dc
Maximum Switching Current AC
5 A
Maximum Switching Current DC
5 A
Length
28mm
Coil Resistance
180Ω
Depth
21.5mm
Minimum Operating Temperature
-40°C
Series
MY
Height
36mm
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
2kV ac
Life
50000000 cycles
Maximum Switching Power DC
120 W
Maximum Switching Power AC
1.1 kVA
Application
General Purpose
Country of Origin
China
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
3.910 OMR
Each (ex VAT)
4.106 OMR
Each (inc. VAT)
1
3.910 OMR
Each (ex VAT)
4.106 OMR
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | 3.910 OMR |
| 5 - 9 | 3.760 OMR |
| 10+ | 3.740 OMR |
