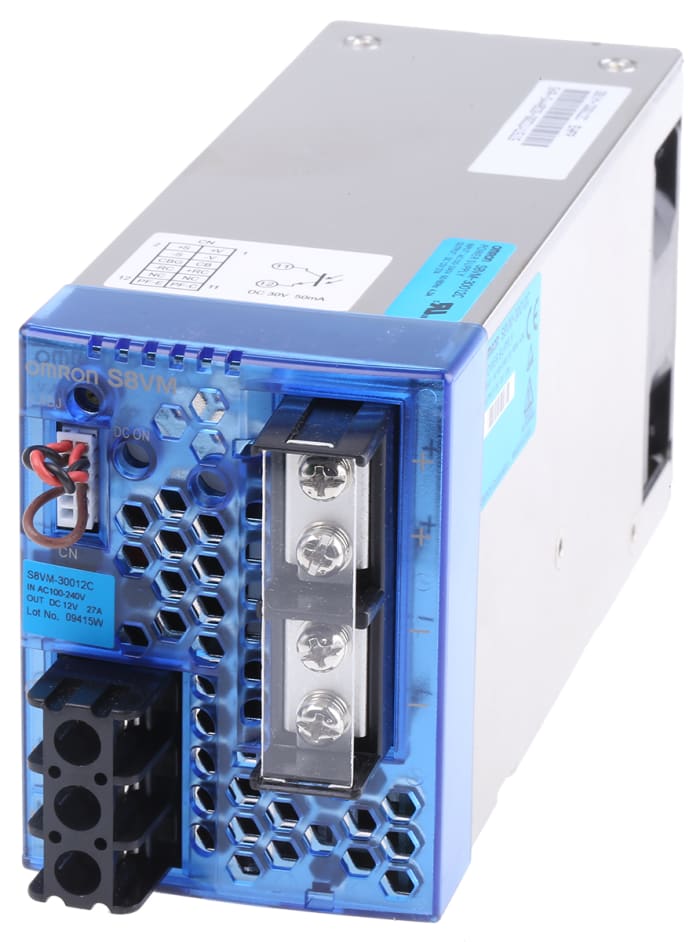

Omron S8VM Switch Mode DIN Rail Panel Mount Power Supply, 85 → 264V ac ac Input, 12V dc dc Output, 27A Output,
Technical Document
Specifications
Brand
OmronType
Switch Mode
Output Voltage
12V dc
Output Current
27A
AC or DC Input Voltage
ac
AC or DC Output Voltage
dc
Input Voltage
85 → 264V ac
Power Rating
300W
Electrical Phase
1
Number of Outputs
1
Height
83.5mm
Width
62.5mm
Depth
188mm
Series
S8VM
Load Regulation
±0.8%
Mounting Type
DIN Rail Mount
Ripple And Noise
±2%
Maximum Temperature
+50°C
Minimum Temperature
0°C
Efficiency
78%
MTBF
135000h
Product details
15W to 1500W S8VM Series with Downtime warning
The S8VM range is in a traditional metal frame format with some new features. The S8VM range can be used as a first indication to supply problems which can result in lost production, The Early warning system (EWS) can diagnose different types of voltage dip and loss which in turn can be wired into a PLC or management system to warn of impending problems.
Series Benefits.
Output voltages easily identified by colour coded labels on the side of the unit
Meets the latest European and relevant international standard
Operating temperature range 0°C to +50°C
