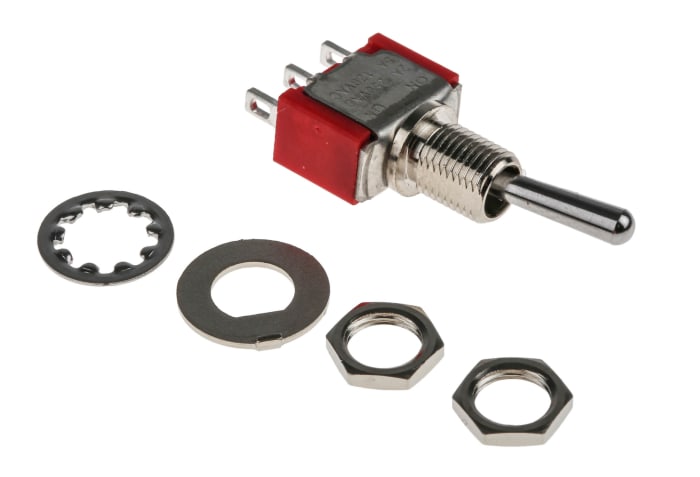

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal

RS Stock No.: 448-0747Brand: RS PRO
brand-logo
View all in Toggle Switches

Technical Document

Specifications

Brand

RS Pro

Contact Configuration

SPDT

Switch Operation

On-On

Contact Current Rating

5 A @ 28 V dc

Mounting Type

Panel Mount

Terminal Type

Solder

Panel Cut Out Diameter

6.35mm

Actuator Length

10.41mm

Actuator Material

Chromium Plated Brass

Contact Material

Silver Plated Brass (Movable)

Contact Resistance

0.01Ω

Panel Cut Out Size

6.35mm

Operating Temperature Range

-30 → +85°C

Maximum Operating Temperature

+85°C

Standards Met

UL Listed

Minimum Operating Temperature

-30°C

Country of Origin

China

Product details

Toggle Switches, Min, Commercial

Silver contacts
Solder tag terminals
Suitable for moderate duty applications
Brass actuator and Diallyl Phthalate case

Approvals

UL recognised component for Canada and US

Miniature Lockable Toggle Switches

Approvals

UL E187490
