Technical Documents
Specifications
Brand
SamtecNumber of Contacts
6
Product Type
PCB Socket
Number of Rows
1
Sub Type
Board-to-Board
Pitch
2.54mm
Current
5.7A
Termination Type
Solder
Housing Material
Black Glass Filled Polyester
Mount Type
Through Hole
Orientation
Vertical
Connector System
Board-to-Board
Voltage
515V
Series
ESQ
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
105°C
Contact Material
Phosphor Bronze
Contact Plating
Matt Tin
Standards/Approvals
RoHS
Product Details

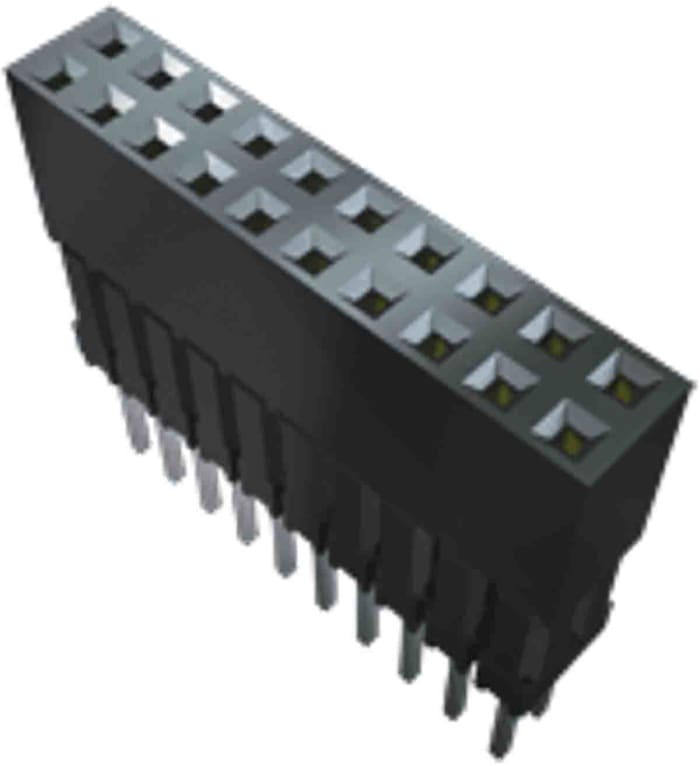

The Samtec ESQ-106-12-T-S is an ESQ series elevated socket. It has standard and low insertion force contacts with 0.635mm square tails for PC/104 applications. Its contacts are made up of phosphor bronze.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
24.327 OMR
0.676 OMR Each (In a Tube of 36) (ex VAT)
25.543 OMR
0.710 OMR Each (In a Tube of 36) (inc. VAT)
36
24.327 OMR
0.676 OMR Each (In a Tube of 36) (ex VAT)
25.543 OMR
0.710 OMR Each (In a Tube of 36) (inc. VAT)
Stock information temporarily unavailable.
36
| Quantity | Unit price | Per Tube |
|---|---|---|
| 36 - 144 | 0.676 OMR | 24.327 OMR |
| 180 - 324 | 0.628 OMR | 22.604 OMR |
| 360+ | 0.556 OMR | 20.021 OMR |
