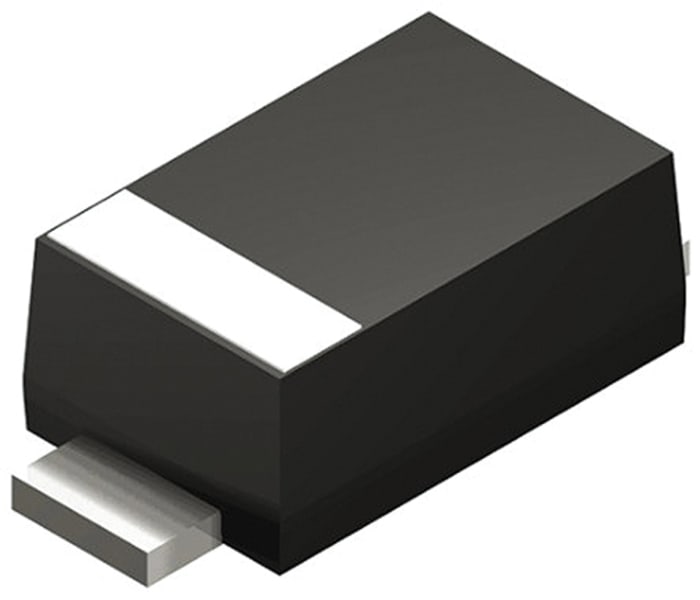

STMicroelectronics 60V 500mA, Schottky Diode, 2-Pin SOD-123 STPS0560Z
Technical Document
Specifications
Brand
STMicroelectronicsMounting Type
Surface Mount
Package Type
SOD-123
Maximum Continuous Forward Current
500mA
Peak Reverse Repetitive Voltage
60V
Diode Configuration
Single
Rectifier Type
Schottky Rectifier
Diode Type
Schottky
Pin Count
2
Number of Elements per Chip
1
Diode Technology
Schottky
Peak Non-Repetitive Forward Surge Current
5.5A
Product details
Schottky Barrier Diodes, up to 1A, STMicroelectronics
High power, efficiency and density.
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
1.430 OMR
0.072 OMR Each (In a Pack of 20) (ex VAT)
1.502 OMR
0.076 OMR Each (In a Pack of 20) (inc. VAT)
Standard
20
1.430 OMR
0.072 OMR Each (In a Pack of 20) (ex VAT)
1.502 OMR
0.076 OMR Each (In a Pack of 20) (inc. VAT)
Standard
20
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 80 | 0.072 OMR | 1.430 OMR |
| 100 - 180 | 0.072 OMR | 1.430 OMR |
| 200 - 480 | 0.060 OMR | 1.210 OMR |
| 500 - 980 | 0.055 OMR | 1.100 OMR |
| 1000+ | 0.055 OMR | 1.100 OMR |
