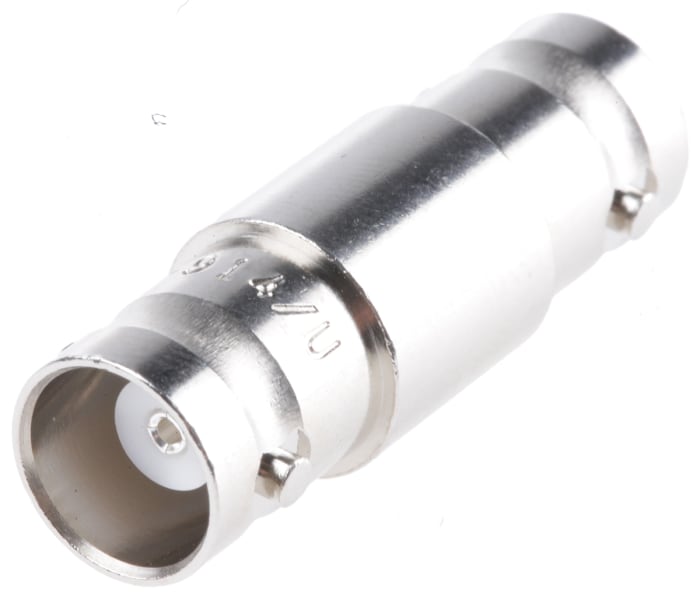

TE Connectivity Straight 50Ω RF Adapter BNC Socket to BNC Socket 4GHz
Technical Document
Specifications
Brand
TE ConnectivityAdapter Type
BNC Jack to BNC Jack
Adapter Type A
BNC
Adapter Type B
BNC
Gender A
Female
Gender B
Female
Impedance
50Ω
Body Orientation
Straight
Operating Frequency
4GHz
Contact Plating
Gold
Length
32.54mm
Contact Material
Phosphor Bronze
Country of Origin
Mexico
Product details
TE Connectivity 50 Ohm RF Coaxial BNC Connectors - Jack-Jack Adapter
50 Ohm RF coaxial feedthrough BNC jack-jack adapters with a nickel plated body.
Stock number 821-9053 has a gold plated contact
Stock number 782-7455 has a silver plated contact
An insulated bushing is available seperately, see stock number 787-1622
TE Connectivity BNC RF Coaxial Connectors
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
16.252 OMR
16.252 OMR Each (ex VAT)
17.065 OMR
17.065 OMR Each (inc. VAT)
1
16.252 OMR
16.252 OMR Each (ex VAT)
17.065 OMR
17.065 OMR Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | 16.252 OMR |
| 25 - 49 | 13.647 OMR |
| 50 - 99 | 12.998 OMR |
| 100 - 249 | 12.708 OMR |
| 250+ | 12.395 OMR |
