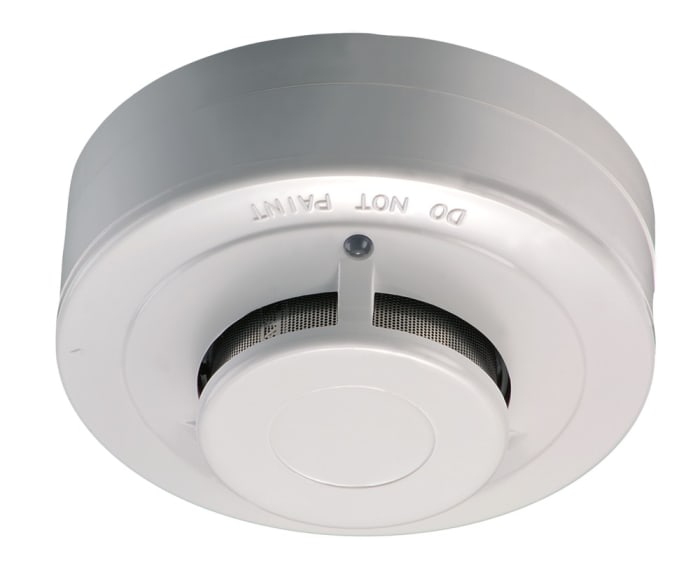

ABUS Security-Center Polycarbonate Flame Sensor Optical Smoke Detector, 12 V
Technical Document
Specifications
Brand
ABUS Security-CenterProduct Type
Flame Sensor
Operating Voltage
12 V
Sub Type
Optical Smoke Detector
Power Indicator
No
Material
Polycarbonate
Diameter
98 mm
Depth
46mm
Standards/Approvals
No
Country of Origin
China
Product details
Smoke Alarm
Opti Smoke optical smoke sensor (RM1000)
For detecting visible smoke particles
Integrated infrared light source generates a light pulse every 8 seconds
Visible smoke particles alter the signal received by a photo-diode and the sensor triggers an alarm
Self-adjusting sensitivity
Floating alarm relay
Direct connection to each alarm control unit
Recording range 40 m2
Mounted to ceiling in centre of room
Opti Heat thermo-differential sensor (RM1100)
Thermo-differential fire detector (heat detector)
Two-way detection (thermo-differential/absolute)
Floating alarm relay
Direct connection to every alarm control unit
For avoiding false alarms in smoking areas, kitchens, garages etc.
It detects an alarm if the temperature rises by more than 3°C within 1 minute or to over 60°C overall in a detection range of 40 m2
Mounted to ceiling in centre of room
Standards
EN54
Stock information temporarily unavailable.
21.495 OMR
21.495 OMR Each (ex VAT)
22.570 OMR
22.570 OMR Each (inc. VAT)
1
21.495 OMR
21.495 OMR Each (ex VAT)
22.570 OMR
22.570 OMR Each (inc. VAT)
Stock information temporarily unavailable.
1
Technical Document
Specifications
Brand
ABUS Security-CenterProduct Type
Flame Sensor
Operating Voltage
12 V
Sub Type
Optical Smoke Detector
Power Indicator
No
Material
Polycarbonate
Diameter
98 mm
Depth
46mm
Standards/Approvals
No
Country of Origin
China
Product details
Smoke Alarm
Opti Smoke optical smoke sensor (RM1000)
For detecting visible smoke particles
Integrated infrared light source generates a light pulse every 8 seconds
Visible smoke particles alter the signal received by a photo-diode and the sensor triggers an alarm
Self-adjusting sensitivity
Floating alarm relay
Direct connection to each alarm control unit
Recording range 40 m2
Mounted to ceiling in centre of room
Opti Heat thermo-differential sensor (RM1100)
Thermo-differential fire detector (heat detector)
Two-way detection (thermo-differential/absolute)
Floating alarm relay
Direct connection to every alarm control unit
For avoiding false alarms in smoking areas, kitchens, garages etc.
It detects an alarm if the temperature rises by more than 3°C within 1 minute or to over 60°C overall in a detection range of 40 m2
Mounted to ceiling in centre of room
Standards
EN54
